Overview
Product Description

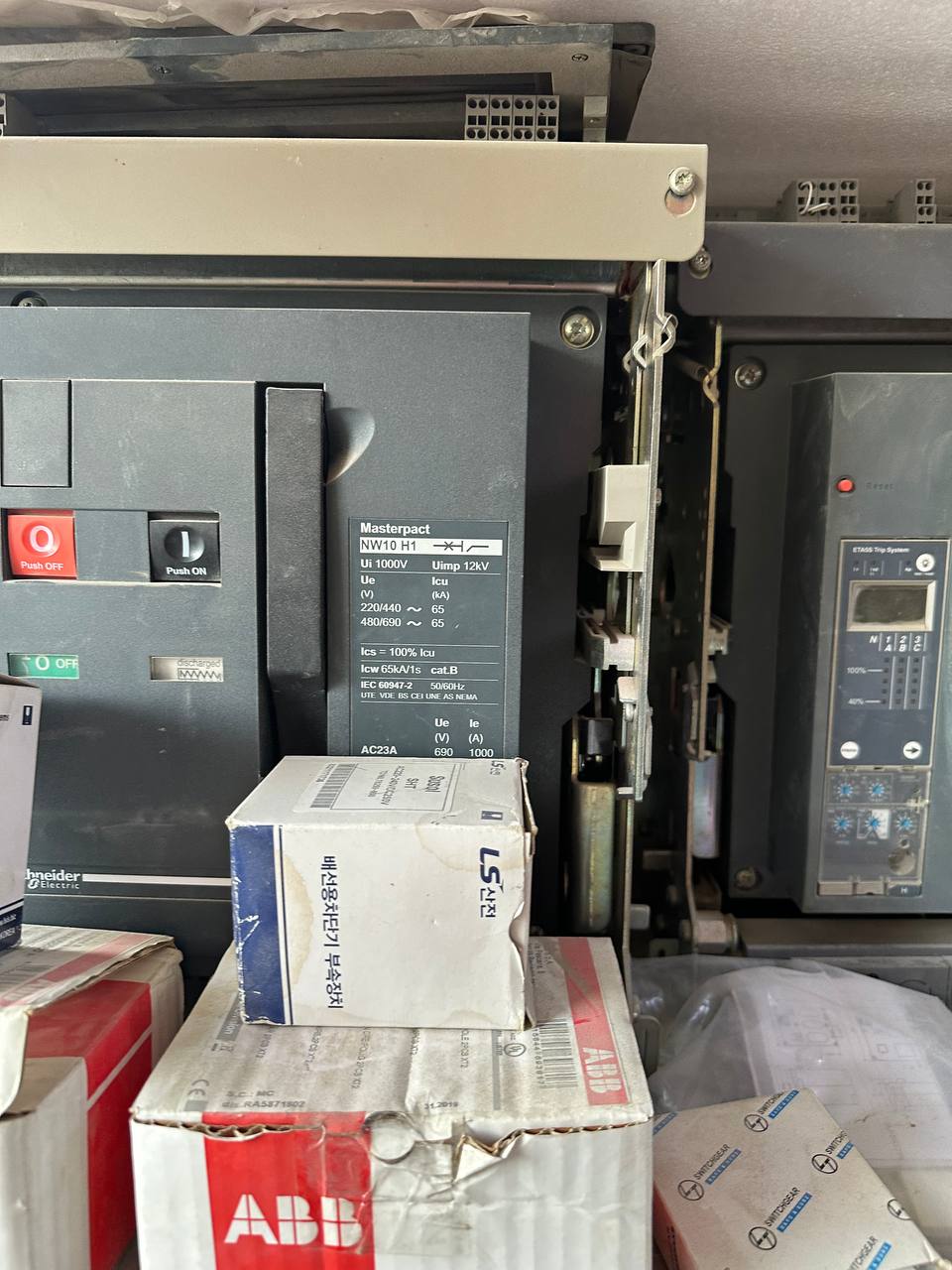

The Schneider Electric MasterPact NW10H1 1000A 3P is a high-performance air circuit breaker frame designed for low-voltage power distribution and protection applications. This configuration is reference 48245, featuring a 1000A rated current at 40°C and H1 65kA breaking capacity at 440V AC. The breaker has a 3-pole drawout construction and is supplied without a trip/control unit, allowing the required protection unit and accessories to be specified separately. It has a 690V AC rated operational voltage and is suitable for isolation in accordance with IEC/EN 60947-2. The MasterPact NW10H1 provides a robust solution for industrial, commercial, infrastructure, and power-distribution installations. Verify the complete configuration, trip unit, accessories, and installation requirements before ordering
Procurement summary
Product Specifications
Part-number matching data for RFQ teams
- Brand
- Schneider MasterPact
- SKU
- SCH-NW10H1-1000A-3P-DRW
- Part Number
- NW10H1
- Category
- Industrial Electrical Equipment
- Condition
- New
- Price
- Request Quote
- Shipping Cost
- Shipping Origin
- UAE
- Country of Origin
- France
- Estimated Delivery
- 5-7 BUSINESS DAYS
Technical data
Technical Details
- Brand
- Schneider Electric
- Model
- MasterPact NW10H1
- Product Type
- Circuit Breaker / ACB Frame
- Application
- Power Distribution Protection
- Poles
- 3P
- Rated Current (In)
- 1000 A at 40°C
- Control Type
- Push-button
