Weidmüller TRZ 12VDC 1CO Relay Module 6A | 1122870000

Overview

Product Description

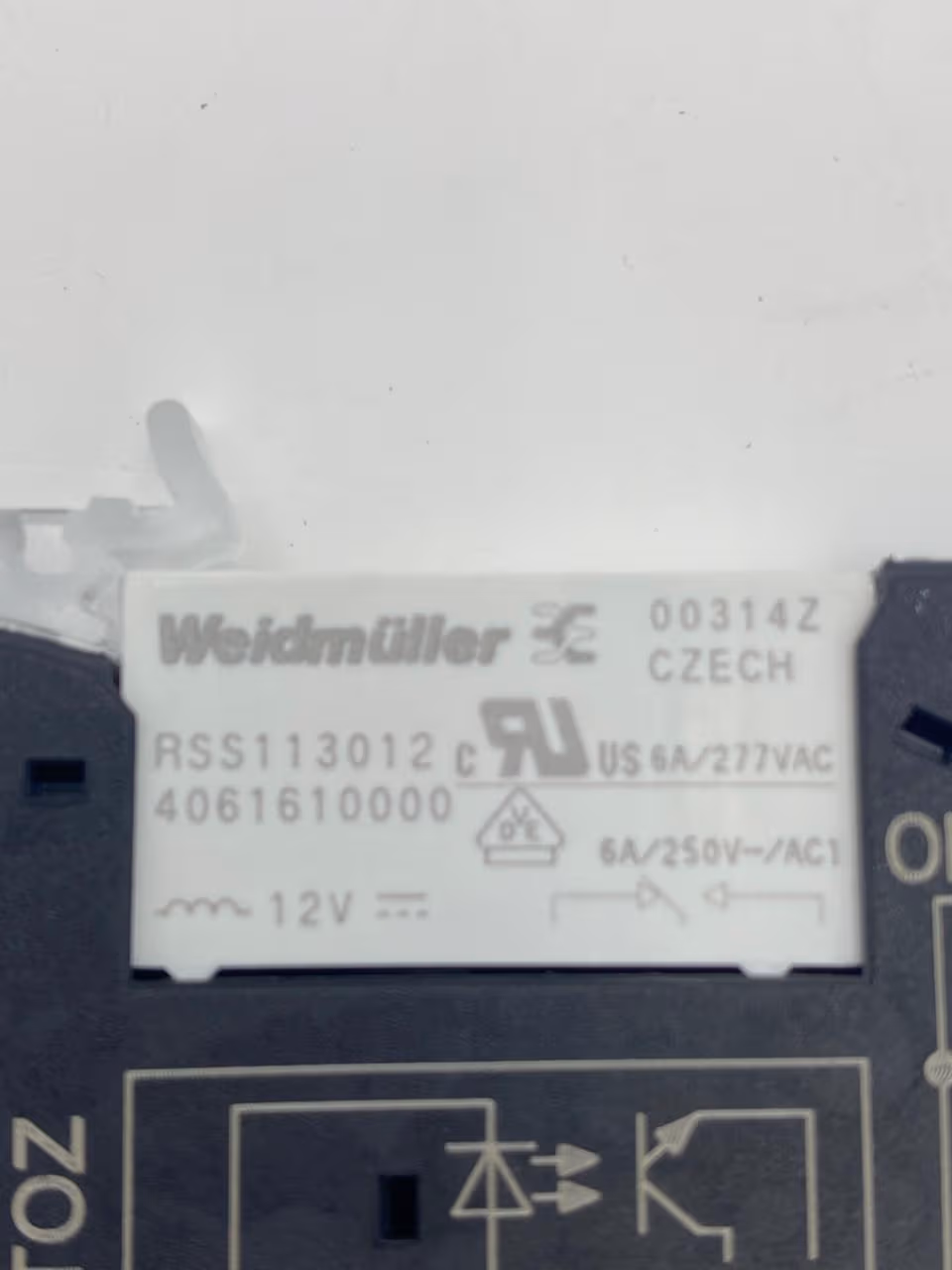

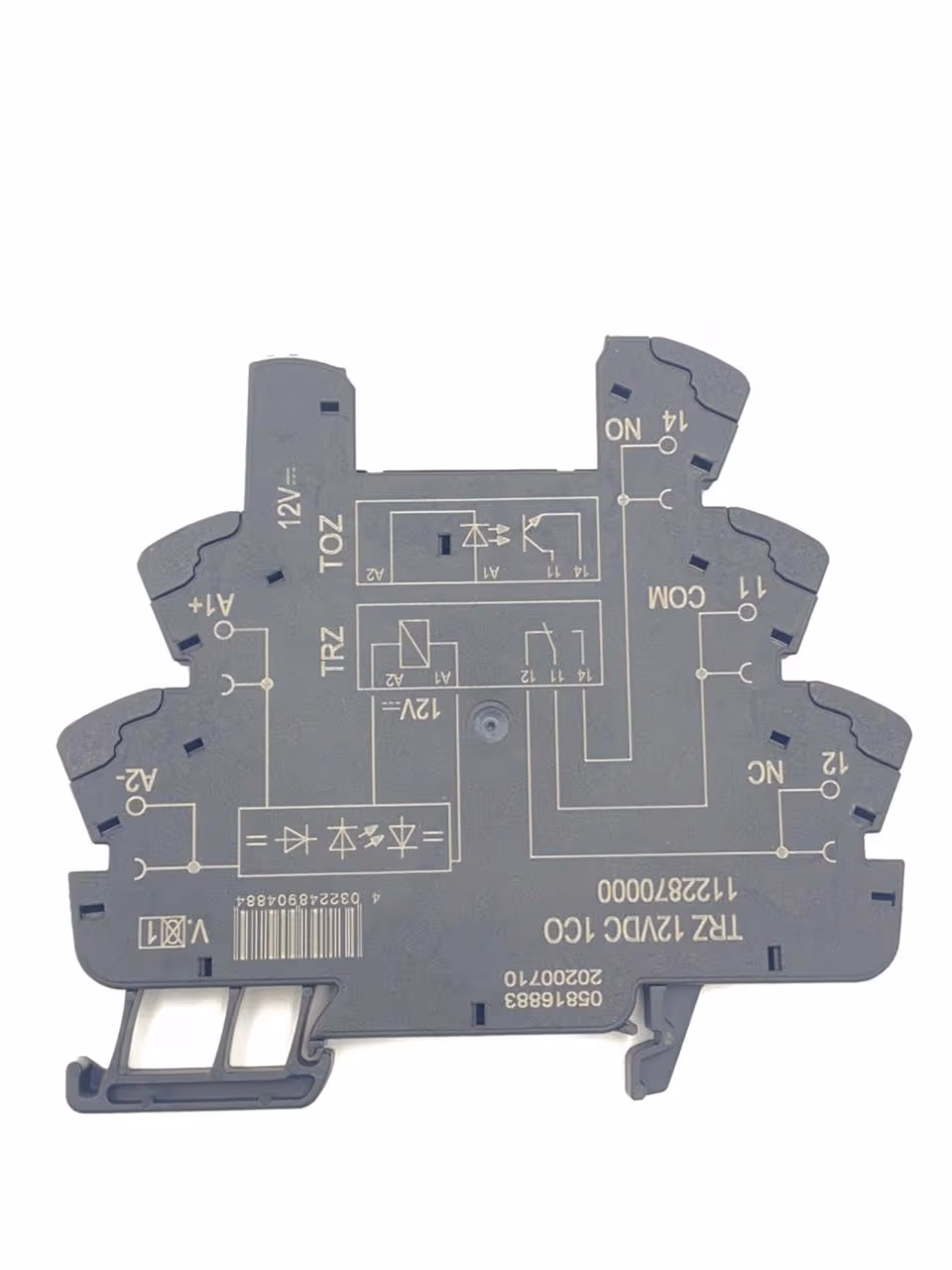

The Weidmüller TRZ 12VDC 1CO is a compact TERMSERIES electromechanical relay module designed for reliable electrical switching and interface applications in industrial automation and control systems. The relay module uses a 12 V DC control voltage and provides a single changeover (1 CO) contact with AgNi contact material. With a 6 A continuous current rating and a maximum switching voltage of 250 V AC or 250 V DC, the TRZ 12VDC 1CO can be used for a wide range of compatible control and switching applications. The module features a green LED status indicator, free-wheeling diode, and reverse-polarity protection on the control side. The compact design has a width of only 6.4 mm, making it suitable for applications where control-panel space is limited. It is designed for TS 35 mounting rail installation and has an IP20 protection rating. The relay module provides reinforced isolation between the input and output, with a dielectric strength of 4 kV between the control and load sides. Its operating temperature range is -40°C to +60°C, supporting use in demanding industrial environments. The exact Weidmüller order number 1122870000 should be checked when purchasing or replacing an existing relay module to ensure the correct voltage, contact configuration, connection type, and current rating are selected. MTC Trades and Tech Solutions supplies industrial electrical, automation, control, and interface components for maintenance, replacement, and project requirements.
